# Learning Goals

After this lecture and the related exercises, you should

 1. understand the basics of Bayesian optimization,
 2. be able to assess when it can be a useful tool and when not,
 3. know how to use the GPyOpt Python package for your own applications.

---


```{r setup, include=FALSE}
library(knitr)
library(reticulate)
use_condaenv("py36")
```

# Outline

 1. Introduction
 2. Bernoulli bandit
 3. Bayesian optimization for continuous domains
 4. Surrogate models: Gaussian processes
 5. Sequential experimental design: Acquisition functions
 6. Human-in-the-loop application: animation design
 7. Summary

$$\newcommand{\E}{\mathbb{E}}$$
$$\DeclareMathOperator*{\argmax}{argmax}$$
$$\DeclareMathOperator*{\argmin}{argmin}$$

---


# Motivation - Formulation

Find the minimum of a function $f(x)$ within some bounded domain $\mathcal{X} \subset \mathbb{R}^D$:

$$x^* = \argmin_{x \in \mathcal{X}} f(x)$$

---

# Motivation - Formulation

Find the minimum of a function $f(x)$ within some bounded domain $\mathcal{X} \subset \mathbb{R}^D$:

$$x^* = \argmin_{x \in \mathcal{X}} f(x)$$

**How would you solve this?**

---

# Motivation - Formulation

Find the minimum of a function $f(x)$ within some bounded domain $\mathcal{X} \subset \mathbb{R}^D$:

$$x^* = \argmin_{x \in \mathcal{X}} f(x)$$

**How would you solve this?**

 * Hand-tuning / trial and error,
 * random search,
 * grid search,
 * gradient descend,
 * evolutationary algorithms,
 * different types of programming (linear, integer, etc.),
 * ...

Whichever method you learned in your optimization course that is suitable for the application.

--

But what if...

---

# Motivation - A/B testing

$f$

 * can only be evaluated implicitly,
 * with a lot of noise.

For example, optimize for click-through rate, retention time, or purchases, implicitly measuring user satisfaction, interest, or revenue of different version of a web site.

<div class="center">
<img src="figs/aalto.png" style="width: 99%" />
</div>


---

# Motivation - Animation design

$f$

 * is a black-box (e.g., contains human judgement),
 * with noisy and expensive/slow evaluations,
 * and multi-modal.

For example, optimizing parameters for procedural animation generation.

<div class="center">
<img src="figs/brochu/anim.png" style="width: 50%" />
</div>

<div style="font-size: 10px;"><a href="https://dl.acm.org/citation.cfm?id=1921443">[image: Brochu et al., 2010]</a></div>

---

# Motivation - Wearable devices

$f$

 * is based on an implicit signal from human,
 * with noisy and expensive/slow evaluations.

For example, optimizing step rate to minimize metabolic cost.

<div class="center">
<img src="figs/wearable_devices.png" style="width: 70%" />
</div>

<div style="font-size: 10px;"><a href="https://journals.plos.org/plosone/article?id=10.1371/journal.pone.0184054">[image: Kim et al., 2017]</a></div>

---

# Motivation - Simulators and cognitive models

$f$

 * contains a parametric simulator,
 * with noisy and expensive/slow evaluations.

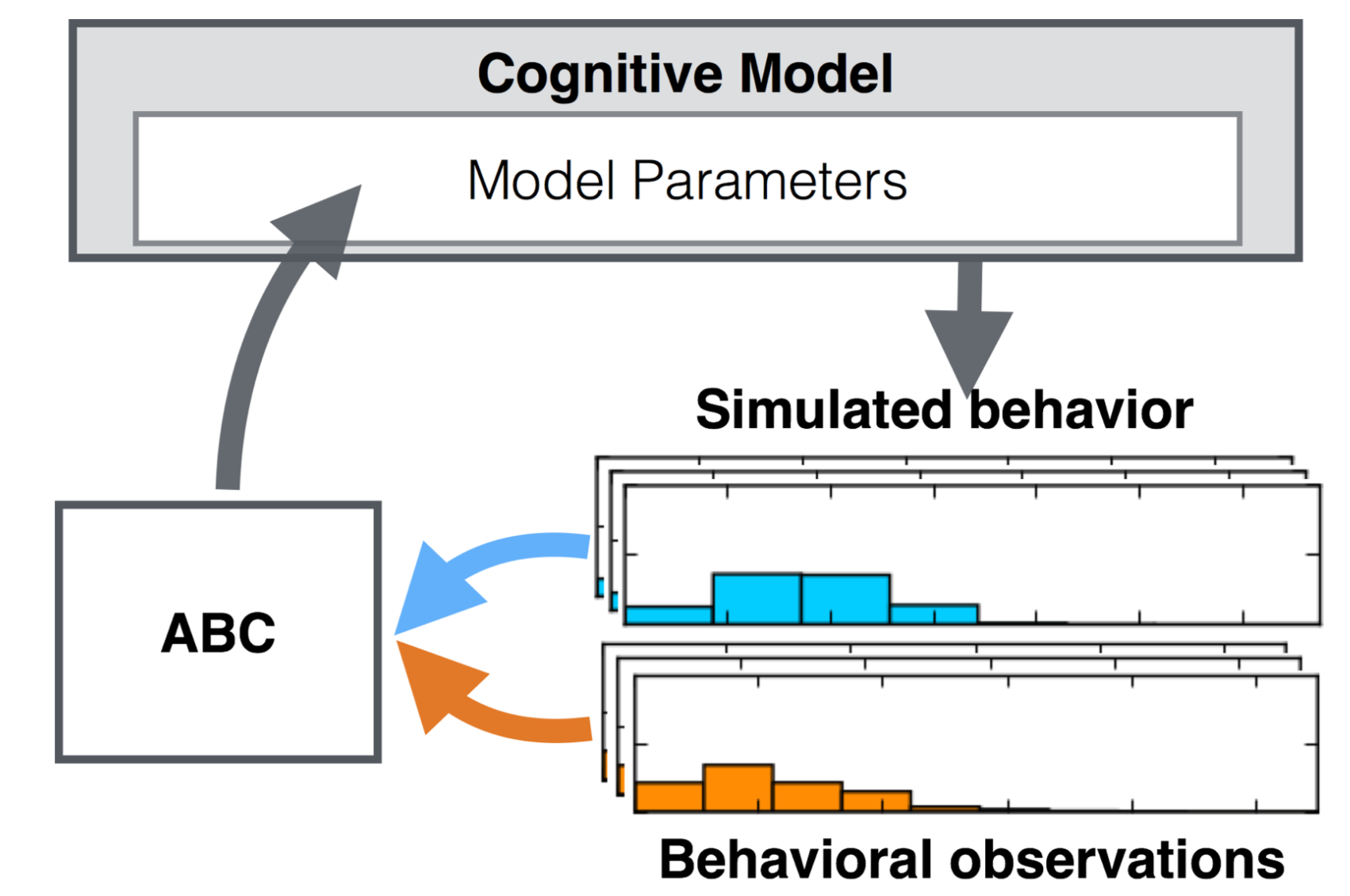

For example, fitting parameters of cognitive simulators to experimental data.

<div class="center">
<img src="figs/abc.png" style="width: 50%" />
</div>

<div style="font-size: 10px;"><a href="https://dl.acm.org/citation.cfm?doid=3025453.3025576">[image: Kangasrääsiö et al., 2017]</a></div>

---

# Motivation - Other applications

 * Recommender systems
 * Sensor networks
 * AutoML: automatic tuning of machine learning models
 * Robotics and reinforcement learning

---
# Motivation

What if

 * $f$ is a black-box that we can only evaluate point-wise,
 * $f$ can be multi-modal,
 * $f$ is slow or expensive to evaluate,
 * evaluations of $f$ are noisy,
 * $f$ has no gradients available (can be used if available).

Natural in many HCI applications.

---

# Motivation

What if

 * $f$ is a black-box that we can only evaluate point-wise,
 * $f$ can be multi-modal,
 * $f$ is slow or expensive to evaluate,
 * evaluations of $f$ are noisy,
 * $f$ has no gradients available (can be used if available).

In principle, we can always do, for example, grid search: scales $O(M^D)$ to fill the domain at constant grid of size $M$ per axis.

---

# Formulation

Find the minimum of a function $f(x)$ within some bounded domain $\mathcal{X} \subset \mathbb{R}^D$:

$$x^* = \argmin_{x \in \mathcal{X}} f(x)$$


 * $f$ is a black-box that we can only evaluate point-wise,
 * $f$ can be multi-modal,
 * $f$ is slow or expensive to evaluate,
 * evaluations of $f$ are noisy,
 * $f$ has no gradients available (can be used if available).

Want to find the minimum with small number of evaluations of $f$.

**How to cope with these?**

---

# Formulation

Find the minimum of a function $f(x)$ within some bounded domain $\mathcal{X} \subset \mathbb{R}^D$:

$$x^* = \argmin_{x \in \mathcal{X}} f(x)$$

Want to find the minimum with small number of evaluations of $f$.

 1. Construct a tractable **statistical surrogate model** of $f$.
 2. Turn the optimization problem into **a sequence of easier problems**.

---

# Bernoulli bandit

Task: A/B testing to find which of two versions of a web ad is better.

 * ''Experiment'': Show one of the two version for a visitor.
 * ''Observation'': Did the visitor click the ad.

--

Want to find out which ad is better, while gathering as much clicks as possible.

Minimize *regret* $R$ for $T$ experiments:
$$R = T \E[y^*] - \sum_{t=1}^T y_t$$
 * $\E[y^*]$ is the expected click rate for the better ad,
 * $y_t \in \{0,1\}$ is whether visitor $t$, who was shown version $x_t \in \{A, B\}$, clicked the ad.

---

# Bernoulli bandit - surrogate model

 * Model click rates of $A$ and $B$ independently. Equations for A below.

**Bayes theorem**: $p(\theta \mid \mathcal{D}) = \frac{p(\mathcal{D} \mid \theta)}{p(\mathcal{D})}  p(\theta)$

updates **prior** knowledge $p(\theta)$ with **observations** $\mathcal{D}$ to **posterior** knowledge $p(\theta \mid \mathcal{D})$.

--

Observation model:

$$\Pr(y_t \mid x_t = A) = \textrm{Bernoulli}(y_t \mid \rho_A) = \rho_A^{y_t} (1 - \rho_A)^{1-y_t}.$$

--

Prior model:

$$p(\rho_A) = \textrm{Beta}(\rho_A \mid \alpha, \beta) = \frac{1}{B(\alpha, \beta)} \rho_A^{\alpha-1} (1 - \rho_A)^{\beta-1}.$$

--

Given a dataset of $t$ observations $\mathcal{D}_t = \{(x_1, y_1), \ldots, (x_t, y_t)\}$, the posterior distribution is
$$p(\rho_A \mid \mathcal{D}_t) = \frac{p(\rho_A) \prod_{t: x_t = A} \Pr(y_t \mid x_t = A)}{\int_0^1 p(\rho_A) \prod_{t: x_t = A} \Pr(y_t \mid x_t = A) d\rho_A} = \textrm{Beta}(\rho_B \mid \alpha + n^{A}_1, \beta + n^{A}_0),$$
where $n^{A}_1$ and $n^{A}_0$ are the total numbers of $y_t = 1$ and $y_t = 0$ for $x_t = A$.

---

# Bernoulli bandit - surrogate model

```{python bayes1, echo=F, results='hide', fig.align='center', fig.width=8, fig.height=6}
import numpy as np
import scipy.stats
from matplotlib import pyplot as plt

x = np.linspace(0, 1, 101)

plt.plot(x, scipy.stats.beta.pdf(x, 1, 1), 'b-', label='Prior Beta(1,1)')
plt.xlabel(r'Click rate $\rho_A$')
plt.ylim(0, 2.5)
plt.legend()
plt.show()
```
---

# Bernoulli bandit - surrogate model

```{python bayes2, echo=F, results='hide', fig.align='center', fig.width=8, fig.height=6}
plt.figure()
plt.plot(x, scipy.stats.beta.pdf(x, 1, 1), 'b-', label='Prior Beta(1,1)')
plt.plot(x, x, 'r-', label='Observation model for y_1=1')
plt.xlabel(r'Click rate $\rho_A$')
plt.ylim(0, 2.5)
plt.legend()
plt.show()
```
---

# Bernoulli bandit - surrogate model

```{python bayes3, echo=F, results='hide', fig.align='center', fig.width=8, fig.height=6}
plt.figure()
plt.plot(x, scipy.stats.beta.pdf(x, 1, 1), 'b-', label='Prior Beta(1,1)')
plt.plot(x, x, 'r-', label='Observation model for y_1=1')
plt.plot(x, scipy.stats.beta.pdf(x, 2, 1), 'k-', label='Posterior Beta(2,1)')
plt.xlabel(r'Click rate $\rho_A$')
plt.ylim(0, 2.5)
plt.legend()
plt.show()
```

---

# Bernoulli bandit - surrogate model

```{python bayes4, echo=F, results='hide', fig.align='center', fig.width=8, fig.height=6}
plt.figure()
plt.plot(x, scipy.stats.beta.pdf(x, 1, 1), 'b-', label='Prior Beta(1,1)')
plt.plot(x, scipy.stats.beta.pdf(x, 2, 5), 'k-', label='Posterior Beta(2,5)')
plt.xlabel(r'Click rate $\rho_A$')
plt.ylim(0, 2.5)
plt.legend()
plt.show()
```

---

# Bernoulli bandit - Thompson sampling

When $t+1$th visitor comes, which ad, $A$ or $B$, to serve?

 * Want to exploit: gather as much clicks as possible.
 * Need to explore: learn about click rates for $A$ and $B$.

Thompson sampling is a simple algorithm navigating this trade-off:

 1. Sample a value for $\hat{\rho}_A$ and for $\hat{\rho}_B$ from $p(\rho_A \mid \mathcal{D}_t)$ and $p(\rho_B \mid \mathcal{D}_t)$.
 2. Show $A$ if $\hat{\rho}_A > \hat{\rho}_B$ and $B$ otherwise.

--

We then observe whether the visitor clicked the ad or not and update our posterior distributions and continue to next iteration.

--

**How does Thompson sampling navigate exploration-exploitation trade-off?**

---

# Bernoulli bandit - simulation

```{python bandit}
import numpy as np; np.random.seed(123)

rho_A_true = 0.1; rho_B_true = 0.2 # simulated visitor click rates
alpha = 1; beta = 1 # prior parameters
n_A1 = 0; n_A0 = 0; n_B1 = 0; n_B0 = 0 # numbers of clicks/no-clicks
T = 1000 # number of iterations
clicks = np.zeros(T); A_or_B = np.zeros(T)

for t in range(T):
    # Thompson sampling
    rho_A = np.random.beta(alpha + n_A1, beta + n_A0)
    rho_B = np.random.beta(alpha + n_B1, beta + n_B0)
    if rho_A > rho_B: # which ad to show
        y_t = np.random.binomial(1, rho_A_true) # simul. click
        n_A1 += y_t; n_A0 += 1 - y_t; # update posterior of A
    else:
        y_t = np.random.binomial(1, rho_B_true) # simul. click
        n_B1 += y_t; n_B0 += 1 - y_t; # update posterior of B
    # collect statistics
    clicks[t] = y_t; A_or_B[t] = rho_A > rho_B
```

```{python bandit_comparison, echo=F}
# instead of Thompson sampling, allocate same numbers to A and B
clicks_half = np.zeros(T)

for t in range(T):
    if t % 2 == 0:
        y_t = np.random.binomial(1, rho_A_true)
    else:
        y_t = np.random.binomial(1, rho_B_true)
    clicks_half[t] = y_t
```

---

# Bernoulli bandit - simulation

```{python bandit_comparison_plot, echo=F, results='hide', fig.align='center', fig.width=10, fig.height=6}
from matplotlib import pyplot as plt
plt.figure()

plt.plot(range(1,T+1), np.cumsum(clicks), 'r-', label='Thompson sampling')
plt.plot(np.array(range(1,T+1))[A_or_B==1], np.cumsum(clicks)[A_or_B==1], 'k.', label='Thompson sampling chose A')
plt.plot(range(1,T+1), np.cumsum(clicks_half), 'b-', label='Half A, half B')
plt.plot(range(1,T+1), np.array(range(1,T+1)) * rho_B_true, 'k-', label='Always B (theoretical average)')
plt.xlabel('iterations')
plt.ylabel('Cumulative number of clicks')
plt.legend(loc=2)
plt.show()
```

---

class: inverse, center, middle

# Questions so far?

---

# Formulation

Find the minimum of a function $f(x)$ within some bounded domain $\mathcal{X} \subset \mathbb{R}^D$:

$$x^* = \argmin_{x \in \mathcal{X}} f(x)$$

Want to find the minimum with small number of evaluations of $f$.

 1. Construct a tractable statistical surrogate model of $f$.
 2. Turn the optimization problem into a sequence of easier problems.

---

# Formulation

Find the minimum of a function $f(x)$ within some bounded domain $\mathcal{X} \subset \mathbb{R}^D$:

$$x^* = \argmin_{x \in \mathcal{X}} f(x)$$

Want to find the minimum with small number of evaluations of $f$.

 1. **Construct a tractable statistical surrogate model of $f$.**
 2. Turn the optimization problem into a sequence of easier problems.

---

# Construct a tractable statistical surrogate model of $f$

Let $g(x)$ be our surrogate model of $f$.

 * $g$ should be able to capture important aspects of $f$ from small number of evaluations.
 * Need to be able to update $g$ when we acquire new evaluations of $f$: $g$ should get better and better as a model of $f$.
 * $g$ should be fast to evaluate and to update.
 * $g$ needs to cope with noise.
 * Need to be able to quantify uncertainty in $g$ (navigating exploration-exploitation tradeoff).

---

# Gaussian processes

 * Gaussian processes provide a probability distribution over functions.
 * Extends (and uses properties of) the multivariate normal distribution $\Rightarrow$ computationally tractable.
 * Prior information about the type or behaviour of the modelled function can be included in the *covariance function* and its parameters.


 * Alternatives: random forests, Bayesian neural networks.

---

# Gaussian processes - 1D example

<div id="gp-outer"></div>

![:gpappstart]

---

# Formulation

Find the minimum of a function $f(x)$ within some bounded domain $\mathcal{X} \subset \mathbb{R}^D$:

$$x^* = \argmin_{x \in \mathcal{X}} f(x)$$

Want to find the minimum with small number of evaluations of $f$.

 1. Construct a tractable statistical surrogate model of $f$.
 2. **Turn the optimization problem into a sequence of easier problems.**

---

# Turn the optimization problem into a sequence of easier problems

Consider having evaluated $f$ at points $x_1, \ldots, x_{t-1}$ and having constructed $p(g \mid \mathcal{D}_{t-1})$:

```{python gp_unc, fig.height=4, fig.width=6, fig.align='center', results='hide', echo=F}
import GPy; import GPyOpt; import numpy as np; from matplotlib import pyplot as plt
np.random.seed(12345)

def f_u(x):
    return x**2 + 0.1 + 0.1 * np.random.randn()
bounds = [{'name': 'var_1', 'type': 'continuous', 'domain': (0,1)}]
myBopt = GPyOpt.methods.BayesianOptimization(
    f=f_u, domain=bounds, acquisition_type='EI',
    exact_feval = False, initial_design_numdata=2, normalize_Y=False)
max_iter = 0; max_time = 60; eps = 10e-6

myBopt.run_optimization(max_iter, eps)
myBopt._update_model()
#myBopt.plot_acquisition()
#myBopt.model.model.plot([0.0,1.0])
model = myBopt.model.model

x_grid = np.arange(0, 1, 0.001)
x_grid = x_grid.reshape(len(x_grid),1)
m, v = model.predict(x_grid)

model.plot_density([0,1], alpha=.5)

plt.plot(x_grid, m, 'k-',lw=1,alpha = 0.6)
plt.plot(x_grid, m-1.96*np.sqrt(v), 'k-', alpha = 0.2)
plt.plot(x_grid, m+1.96*np.sqrt(v), 'k-', alpha=0.2)

Xdata, Ydata = myBopt.get_evaluations()

plt.plot(Xdata, Ydata, 'r.', markersize=10)

plt.show()
```

How to choose the next $x$ to evaluate $f$ at?

**What would you do?**

---

# Turn the optimization problem into a sequence of easier problems

Consider having evaluated $f$ at points $x_1, \ldots, x_{t-1}$ and having constructed $p(g \mid \mathcal{D}_{t-1})$:

```{python gp_unc2, fig.height=4, fig.width=6, fig.align='center', results='hide', echo=F}
plt.figure()
myBopt.plot_acquisition()
```

**Guided exploration** using $p(g \mid \mathcal{D}_t)$:

 * Trade off exploration (reducing uncertainty) and exploitation (sampling near likely places of optima).
 * Formulated by maximizing an acquisition function $\alpha(x; \mathcal{D}_{t-1})$.

---

# Turn the optimization problem into a sequence of easier problems

How to choose the next $x$ to evaluate $f$ at?

**Guided exploration** using $p(g \mid \mathcal{D}_{t-1})$:

 * Trade off exploration (reducing uncertainty) and exploitation (sampling near likely places of optima).
 * Formulated by maximizing an acquisition function $\alpha(x; \mathcal{D}_{t-1})$.

$$x_{t} = \argmax_x \alpha(x; \mathcal{D}_{t-1})$$

--

**Thompson sampling** acquisition function:

 * $\alpha(x; \mathcal{D}_{t-1}) = \hat{g}(x)$, where $\hat{g}(x)$ is a sample from $p(g \mid \mathcal{D}_{t-1})$.

--

**Expected improvement** acquisition function:

 * Currently best value $y^* = \max_{s \in \{1,\ldots,t-1\}} y_s$.
 * Improvement function provides utility of $x$ given $g$: $I(x, g) = (g(x) - y^*) I(g(x) > y^*)$.
 * Expected improvement: $\alpha_{EI}(x; \mathcal{D}_t) = \E_g[I(x, g)]$.

--

Many others also exists.

---

# Bayesian Optimization Recipe

**Goal**: Find the minimum of a function $f(x)$ within some bounded domain $\mathcal{X} \subset \mathbb{R}^D$:

$$x^* = \argmin_{x \in \mathcal{X}} f(x)$$

--

**Key ideas**

 1. Construct a tractable statistical surrogate model of $f$.
 2. Turn the optimization problem into a sequence of easier problems.

--

**Algorithm**

 1. Initialize dataset $\mathcal{D}_0$, surrogate model $p(g \mid \mathcal{D}_0)$; choose acquisition function $\alpha(\cdot)$.
 2. Loop for $t = 1,2,\ldots,T$:
      1. Select next evaluation point: $x_{t} = \argmax \alpha(x; \mathcal{D}_{t-1})$.
      2. Evaluate $f(x_{t})$ to obtain $y_{t}$.
      3. Update dataset $\mathcal{D}_{t} = \{\mathcal{D}_{t-1},(x_t, y_t)\}$.
      4. Update surrogate model $p(g \mid \mathcal{D}_t)$.
 3. Report the found optimum.

---

class: inverse, center, middle

# Questions so far?

---

# GPyOpt - Python package

```{python gpyopt_example, fig.height=4, fig.width=6, results='hide', fig.align='center'}
import GPyOpt
import numpy as np; np.random.seed(12345)
from matplotlib import pyplot as plt

def f_u(x):
    return 0.2 * (x - 0.3)**2 - 0.4 * np.sin(15.0 * x)

plt.figure(); xx = np.linspace(0, 1, 101)
plt.plot(xx, f_u(xx), 'k-'); plt.show()
```

---

# GPyOpt

```{python gpyopt_example2, fig.height=4, fig.width=6, results='hide', fig.align='center'}
bounds = [{'name': 'var_1', 'type': 'continuous', 'domain': (0,1)}]
myBopt = GPyOpt.methods.BayesianOptimization(
    f=f_u, domain=bounds,        # Function and domain
    acquisition_type='EI',       # Expected improvement
    exact_feval=True,            # Noiseless function evaluations
    eps=1e-6,
    normalize_Y=False,           # (for clearer visualization)
    initial_design_numdata=2)    # (for clearer visualization)
```

---

# GPyOpt

```{python gpyopt_example3, fig.height=6, fig.width=8, results='hide', fig.align='center'}
myBopt.run_optimization(max_iter=1)
myBopt.plot_acquisition()
```

---

# GPyOpt

```{python gpyopt_example4, fig.height=6, fig.width=8, results='hide', fig.align='center'}
myBopt.run_optimization(max_iter=1)
myBopt.plot_acquisition()
```

---

# GPyOpt

```{python gpyopt_example5, fig.height=6, fig.width=8, results='hide', fig.align='center'}
myBopt.run_optimization(max_iter=1)
myBopt.plot_acquisition()
```

---

# GPyOpt

```{python gpyopt_example6, fig.height=6, fig.width=8, results='hide', fig.align='center'}
myBopt.run_optimization(max_iter=1)
myBopt.plot_acquisition()
```

---

# GPyOpt

```{python gpyopt_example7, fig.height=6, fig.width=8, results='hide', fig.align='center'}
myBopt.run_optimization(max_iter=1)
myBopt.plot_acquisition()
```

---

# GPyOpt

```{python gpyopt_example8, fig.height=6, fig.width=8, results='hide', fig.align='center'}
myBopt.run_optimization(max_iter=1)
myBopt.plot_acquisition()
```

---

# GPyOpt

```{python gpyopt_example9, fig.height=6, fig.width=8, results='hide', fig.align='center'}
myBopt.run_optimization(max_iter=1)
myBopt.plot_acquisition()
```

---

# GPyOpt

```{python gpyopt_example10, fig.height=6, fig.width=8, results='hide', fig.align='center'}
myBopt.run_optimization(max_iter=1)
myBopt.plot_acquisition()
```

---

# GPyOpt

```{python gpyopt_example11, fig.height=6, fig.width=8, results='hide', fig.align='center'}
myBopt.run_optimization(max_iter=1)
myBopt.plot_acquisition()
```

---

# GPyOpt

```{python gpyopt_example12, fig.height=6, fig.width=8, results='hide', fig.align='center'}
myBopt.run_optimization(max_iter=1)
myBopt.plot_acquisition()
```

---

# GPyOpt

```{python gpyopt_example13, fig.height=6, fig.width=8, results='hide', fig.align='center'}
myBopt.run_optimization(max_iter=1)
myBopt.plot_acquisition()
```

---

# GPyOpt

```{python gpyopt_example14, fig.height=6, fig.width=8, results='hide', fig.align='center'}
myBopt.run_optimization(max_iter=1)
myBopt.plot_acquisition()
```

---

# GPyOpt

```{python gpyopt_example15, fig.height=6, fig.width=8, results='hide', fig.align='center'}
myBopt.run_optimization(max_iter=1)
myBopt.plot_acquisition()
```

---

# Is it guaranteed to work?

 * Theoretical guarantees (regret bounds) exists under some conditions.
 * ''There is still a wide gap between theory and practice.'' - Shahriari et al.

''[...]the careful choice of statistical model is often far more important than the choice of acquisition function heuristic.'' - Shahriari et al.

--

**Some limitations**

 * Difficult for high-dimensional spaces.
 * Can spend a lot of time on the edges of the space (Siivola et al., MLSP 2018).
 * Computation complexity of inference in Gaussian processes scales as $O(N^3)$, where $N$ is the number of observations (sparse GPs/inducing point approximations can be used; or other types of models).
 * Optimizing hyperparameters (controlling the behaviour of the surrogate) can be challenging.

---

# Human-in-the-loop applications

Two types of rather direct human-in-the-loop applications:
 * Human provides explicit feedback at $x$, the value $f(x)$.
 * Human provides implicit feedback at $x$, for example, $f(x)$ is a completion time of a task with parameters $x$.

<div class="center">
<img src="figs/brochu/anim.png" style="width: 35%" />
<img src="figs/wearable_devices.png" style="width: 55%" />
</div>

---

# Application: Animation design

<div class="center">
<img src="figs/brochu/anim.png" style="width: 50%" />
</div>

Eric Brochu, Tyson Brochu, Nando de Freitas: **A Bayesian Interactive Optimization Approach to Procedural Animation Design**, Eurographics/ACM SIGGRAPH Symposium on Computer Animation (2010).

---

# Application: Animation design

<div class="center">
<img src="figs/brochu/anim.png" style="width: 50%" />
</div>

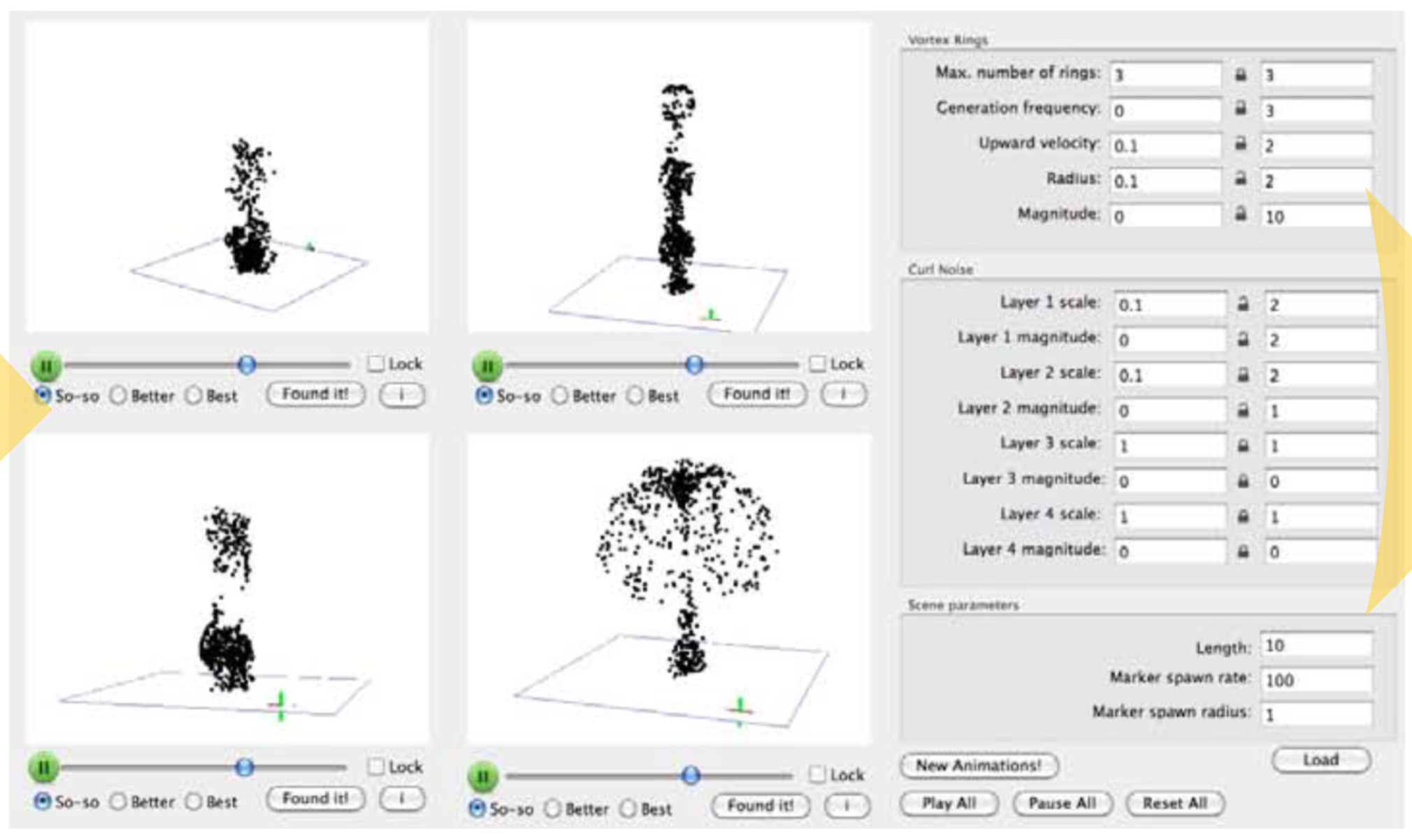

Find parameters for generating a procedural fluid animation:

* velocity, radius and magnitude of the (possibly multiple) vortex rings,
* length scale and magnitude of the curl noise,
* relative strengths of vortex rings and curl noise.

--

User can easily tell which animations look good: ''the psychoperceptual process underlying judgment - how well a realization fits what the user has in mind''.


---

# Application: Animation design

<div class="center">
<img src="figs/brochu/ui.png" style="width: 99%" />
</div>

---

# Application: Animation design

<div class="center">
<img src="figs/brochu/bo_alg.png" style="width: 99%" />
</div>

---

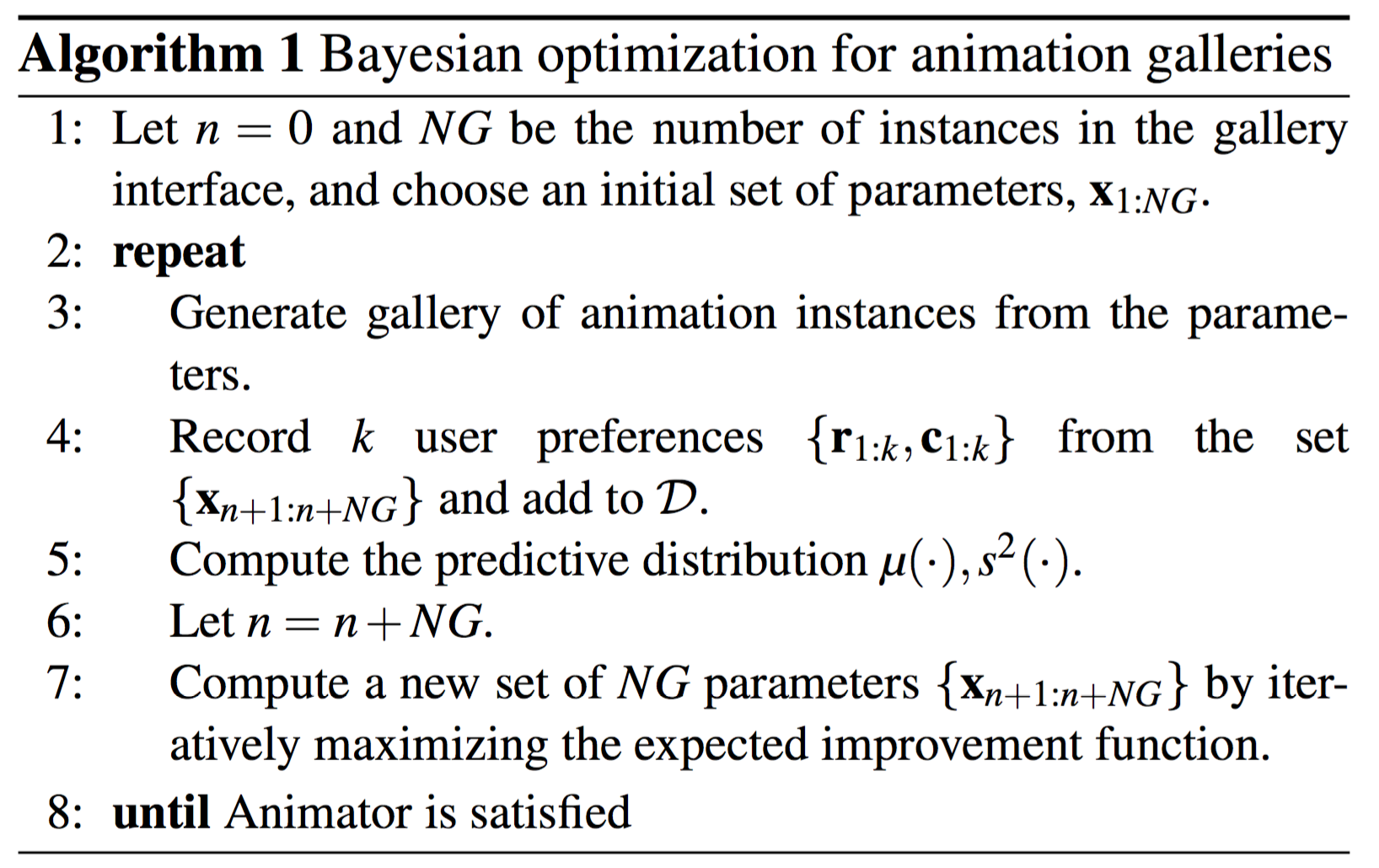

# Application: Animation design

 * Obtained improved results compared to novice and expert users setting parameters manually.
 * Tailored the Bayesian optimization approach to make it work:
      1. preferential feedbacks,
      2. transfer information over multiple sessions,
      3. combined manual parameter tuning and Bayesian optimization.

---

# Summary

Find the minimum of a function $f(x)$ within some bounded domain $\mathcal{X} \subset \mathbb{R}^D$:

$$x^* = \argmin_{x \in \mathcal{X}} f(x)$$


 * $f$ is a black-box that we can only evaluate point-wise,
 * $f$ can be multi-modal,
 * $f$ is slow or expensive to evaluate,
 * evaluations of $f$ are noisy,
 * $f$ has no gradients available (can be used if available).

--

**Wide range of applications**. Relevant for HCI and human-in-the-loop modelling.

--

**Key ideas**

 1. Construct a tractable statistical surrogate model of $f$, with proper uncertainty quantification.
 2. Turn the optimization problem into a sequence of easier problems, navigating the exploration-exploitation tradeoff.

--

Many **software implementations** (e.g., GPyOpt) exists. Relatively easy to start using.

---

# Further resources

 * <a href="https://ieeexplore.ieee.org/document/7352306">Shahriari et al., **Taking the Human Out of the Loop: A Review of Bayesian Optimization**, Proceedings of the IEEE, 2016.</a>
 * <a href="http://nbviewer.jupyter.org/github/CamDavidsonPilon/Probabilistic-Programming-and-Bayesian-Methods-for-Hackers/blob/master/Chapter1_Introduction/Ch1_Introduction_PyMC3.ipynb">Cam Davidson-Pilon, **Chapter 1: Introduction to Bayesian Methods from Bayesian Methods for Hackers**.<a/>
 * <a href="http://www.gaussianprocess.org/gpml/">Rasmussen, Williams, **Gaussian Processes for Machine Learning**, MIT Press, 2016.</a>
 * <a href="http://sheffieldml.github.io/GPyOpt/">GPyOpt, Python package for Bayesian optimization.</a>
 * <a href="http://www.tmpl.fi/gp/">Interactive Gaussian process regression demo.</a>
 * <a href="https://dl.acm.org/citation.cfm?id=1921443">Brochu et al., **A Bayesian Interactive Optimization Approach to Procedural Animation Design**, Eurographics/ACM SIGGRAPH Symposium on Computer Animation, 2010.</a>.
 * <a href="https://journals.plos.org/plosone/article?id=10.1371/journal.pone.0184054">Kim et al., **Human-in-the-loop Bayesian optimization of wearable device parameters**, PLOS ONE, 2017.</a>
 * <a href="https://dl.acm.org/citation.cfm?doid=3025453.3025576">Kangasrääsiö et al., **Inferring Cognitive Models from Data using Approximate Bayesian Computation**, CHI 2017.</a>
 * <a href="https://arxiv.org/abs/1704.00963">Siivola et al., **Correcting boundary over-exploration deficiencies in Bayesian optimization with virtual derivative sign observations**, MLSP 2018.</a>
